WireLynx 1000 Series Powerline Carrier Products

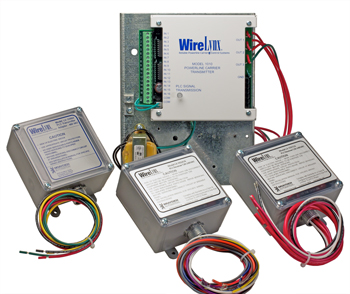

The 16-channel LX-1000 system consists of a LX-1010 16-input transmitter and one or more receivers.  Several models of receivers are available for different size and type loads.  Any number of receivers can be deployed around the building, but each is assigned to one of 16 channels and will respond to the on/off command sent by the transmitter for that channel.  Best for applications requiring individual control of many devices or loads with up to 16 different channels.



Why use WireLynx Powerline Carrier Products?

WireLynx Powerline Carrier Systems are superior for general purpose control applications. Below details some of the reasons why:

  • WireLynx is designed for permanent installation
  • Flexible in connecting to various electrical service types
  • Transmitters use a frequency-shift keying (FSK) technology for superior noise immunity and high reliability
  • Transmitters use high power electronics to insure the PLC signal is received by receivers located long distances from the transmitter.
  • Transmitters scan the inputs and send a complete packet of data every half second.  Continuous transmission allows only verified control commands to be implemented
  • Receivers built-in microcontroller uses a redundancy algorithm that insures only verified data packets are implemented.  Receivers also contain a fail safe time-out and default to a designated state if the transmitter signal is lost.
  • WireLynx products use high quality components and are assembled and tested to exacting standards in the USA.
  • The robust technology of WireLynx products has been used for over 30 years

The WireLynx 1000 Series has been used in a wide variety of applications.
The most common are:

  • HVAC
  • Refrigeration
  • Fans
  • Lighting or Zone Control
  • Energy Management
  • Or other applications requiring individual control of many devices or loads

Click on the downloadable PDF for more information:

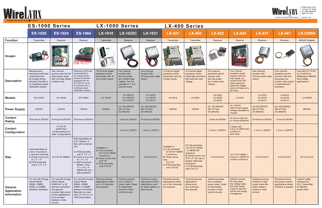

WireLynx 1000 Series Product Chart



WireLynx Product Chart



WireLynx Hook-Up Diagrams

PLC Products

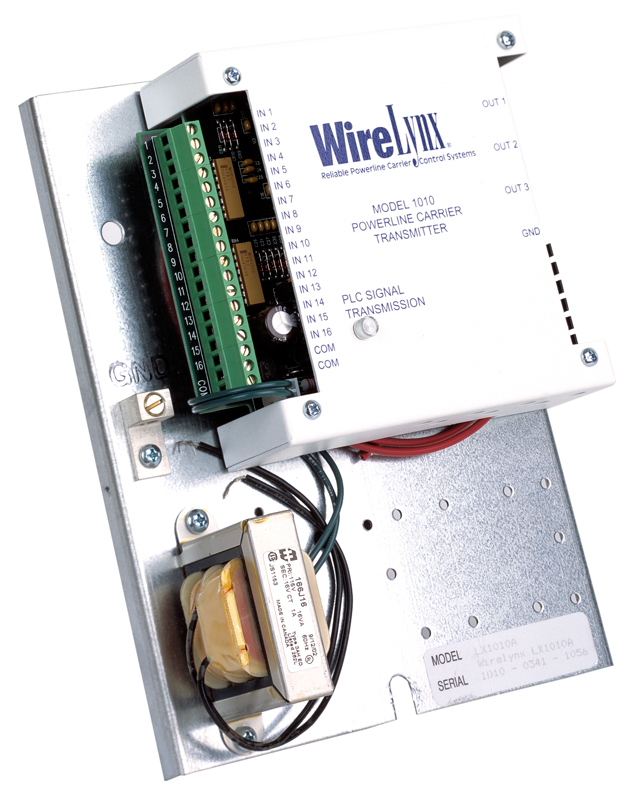

LX-1010A Transmitter

LX-1010

Description:
16-Channel digital powerline carrier transmitter with 16 dry-contact inputs

Application Information:
General purpose applications where up to 16 channels are required





Specifications
Models:
LX-1010A
Power Supply:
120 VAC
Sizes Available:
  • Fully enclosed 12" x 10" x 4" NEMA 1 enclosure
  • Panel mount only 9" x 7" x 3"
  • PCB assembly only 5" x 6" x 2"

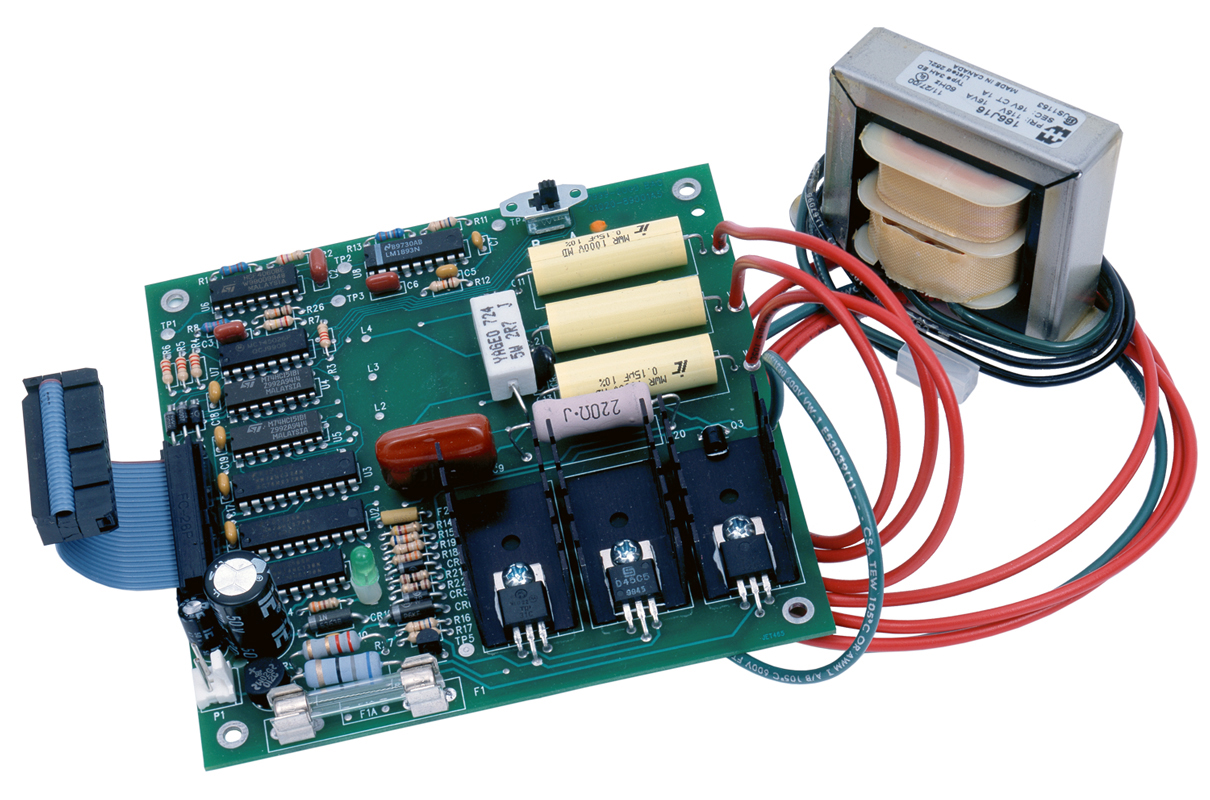

ES-1020A Transmitter

ES-1020A

Description:
Continuously receives on/off load commands from an Energy Sentry 9300 Series demand controller and transmits these commands onto the home or building's power distribution system

Application Information:
For use with Energy Sentry Model 9388A, 9388B demand controllers.



Specifications
Models:
ES-1020A
Power Supply:
120 VAC
Sizes Available:

Sold separately as a kit or mounted in a demand controller

  • Panel mount only 9" x 7" x 3"
  • PCB assembly only 5" x 6" x 2"

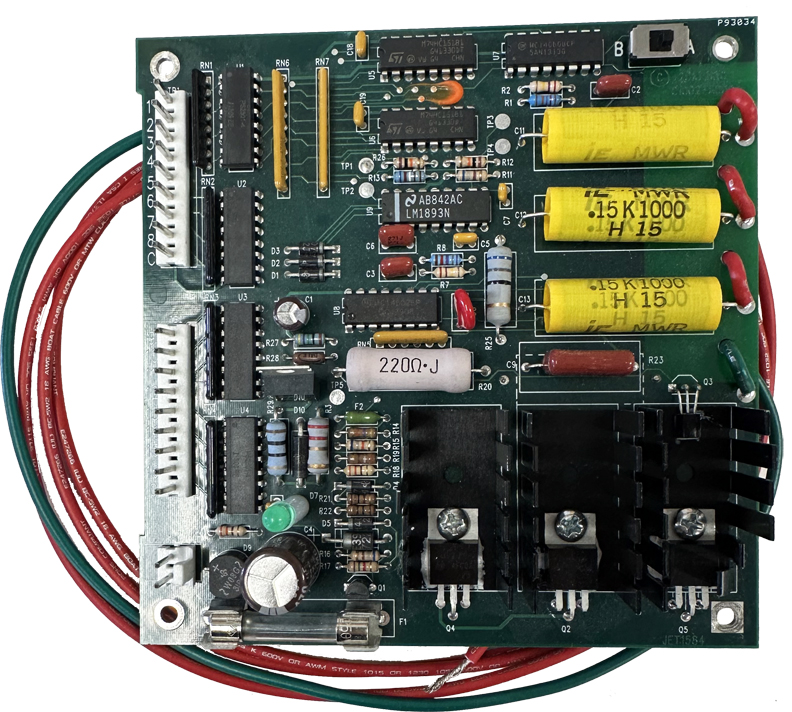

ES-1002A Transmitter

ES-1002A

Description:
The ES-1002A Transmitter continuously receives on/off load commands from an Energy Sentry 9312A demand controller and transmits these commands onto the home or building's power distribution system.

Application Information:
For use with Energy Sentry Model 9312A residential demand control system.



Specifications
Models:
ES-1002A
Power Supply:
120:16 VAC Power Transformer (included)
Sizes Available:

Sold separately as a kit or mounted in a demand controller

  • PCB assembly only 5" x 5" x 2"

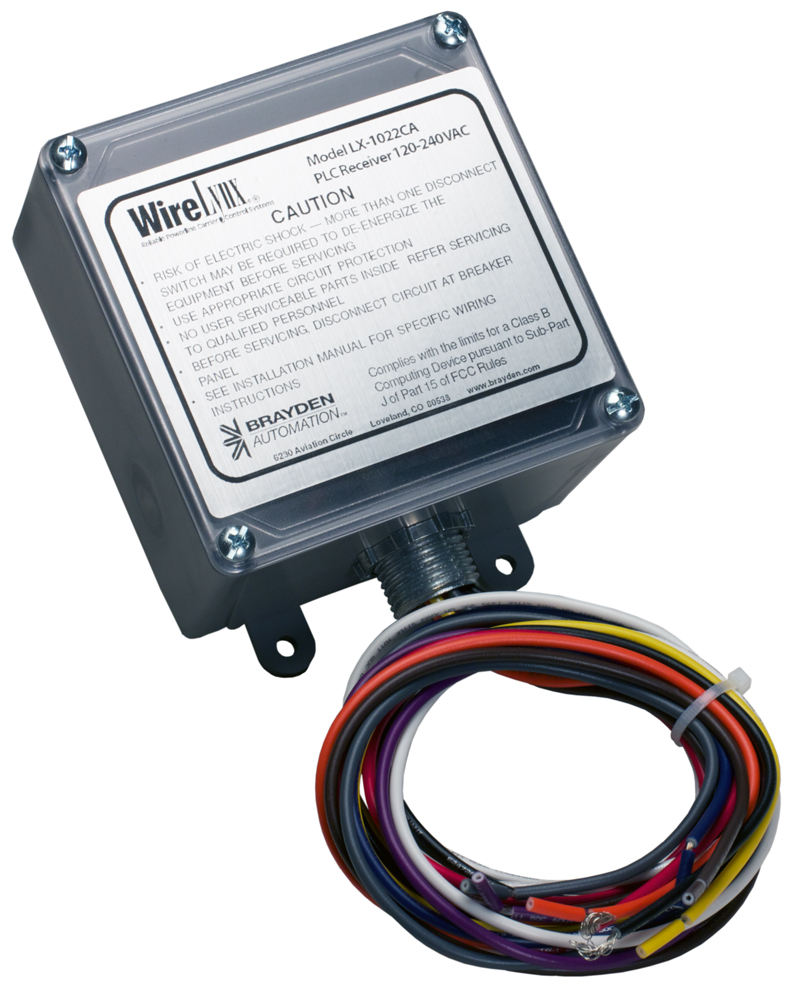

ES-1022 Receiver

ES-1022C

Description:
Two channel receiver with two low-power dry contact relay outputs. Can be operated in 1 or 2 channel mode

Application Information:
General purpose low to medium power loads. Great for thermostat circuits or other control circuits



Specifications
Models:

ES-1022A
ES-1022M
ES-1022H

Power Supply:
  • (A) 120-240 VAC
  • (M) 277 VAC
  • (H) 480 VAC
Contact Rating: 3 Amp at 250 VAC
Contact Configuration: 2 Form C (SPDT)
Size: 4.5" x 4.5" x 2.5"

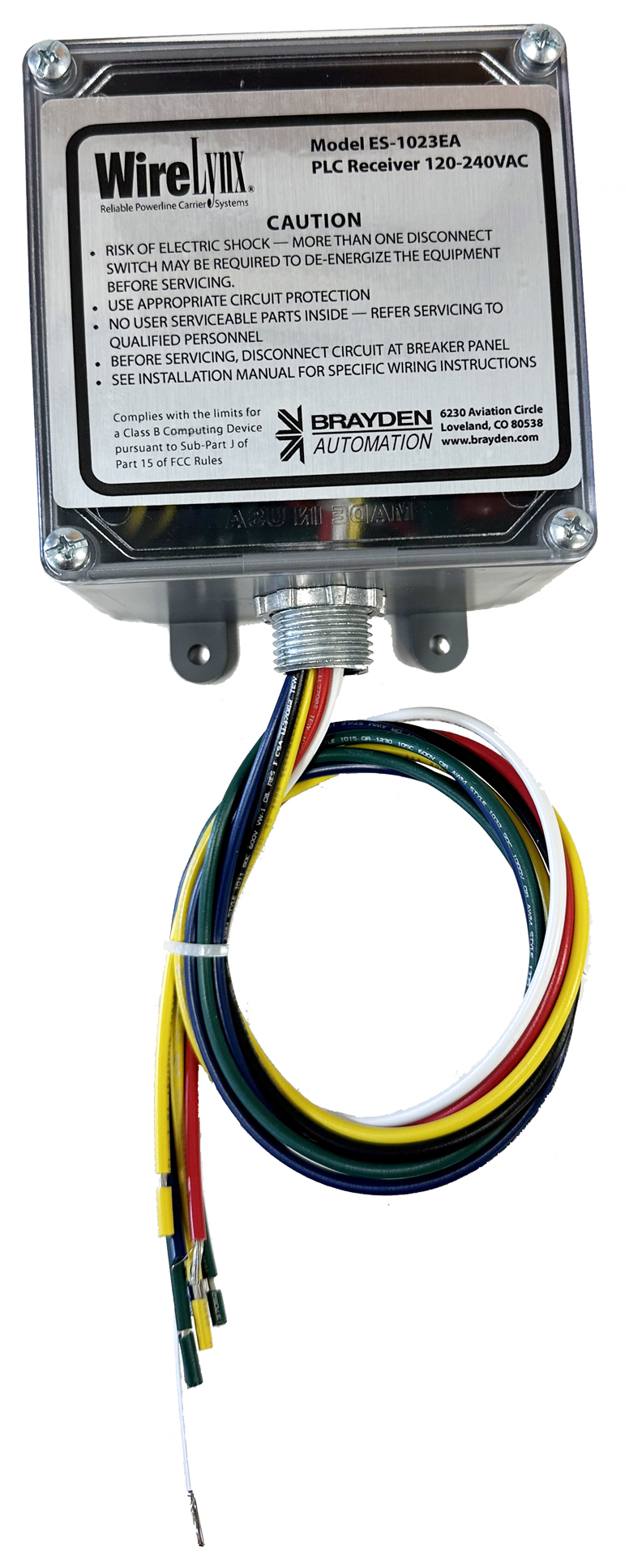

ES-1023A/M/H Receiver

ES-1022C

Description:
Two channel receiver with three low-power dry contact relay outputs, two for channel 1 and one for Channel 2. The ES-1023 can be operated in either the 1 or 2 channel mode.

The first channel features a DPST-NC relay for applications requiring two dry-contact normally-closed, low-voltage contacts, such as when the compressor and the blower must be turned on and off together.  The second channel features the standard SPST-NC dry-contact, normally closed low voltage relay

Application Information:
General purpose low to medium power loads. Great for thermostat circuits or other control circuits



Specifications
Models:

ES-1023A
ES-1023M
ES-1023H

Power Supply:
  • (A) 120-240 VAC
  • (M) 277 VAC
  • (H) 480 VAC
Contact Rating: 3 Amp at 250 VAC
Contact Configuration:

Channel 1: 2 Form B (DPST-NC)
Channel 2: 1 Form B (SPST-NC)

Size: 4.5" x 4.5" x 2.5"

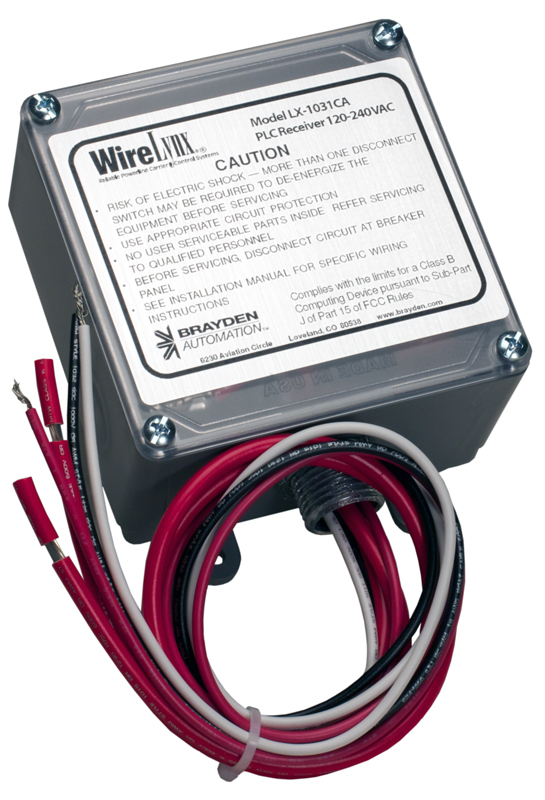

ES-1031 Receiver

ES-1031

Description:
One channel receiver with 30 Amp power relay output

Application Information:
General purpose high-power control applications such as water heaters or heat circuits



Specifications
Models:

ES-1031A
ES-1031M
ES-1031H

Power Supply:
  • (A) 120-208 VAC
  • (M) 277 VAC
  • (H) 480 VAC
Contact Rating: 30 Amps at 250 VAC
Contact Configuration: 1 Form C (SPDT)
Size: 4.5" x 4.5" x 2.5"

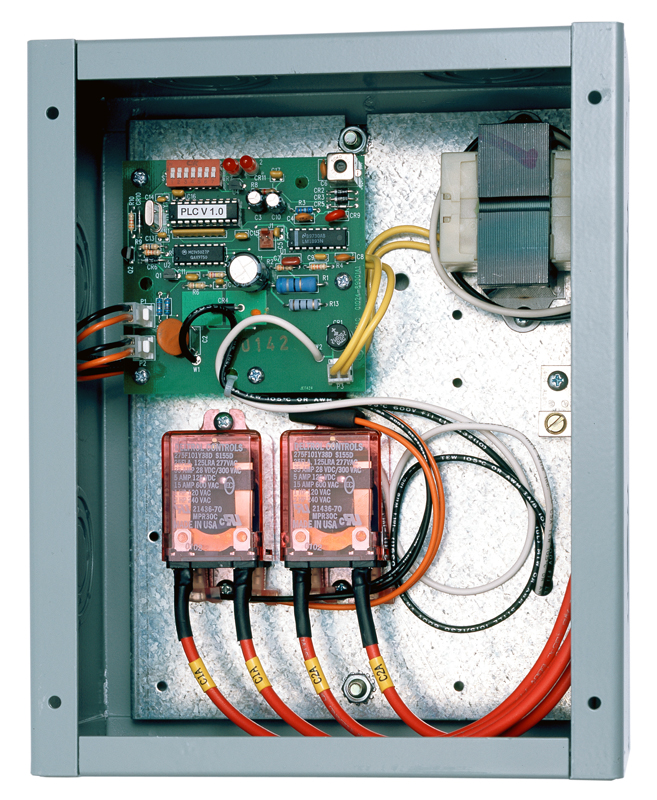

ES-1024A Receiver

ES-1024

Description:
Two channel receiver with two 30 Amp power relays with normally closed contacts only

Application Information:
General purpose high-power control applications such as water heaters or heat circuits



Specifications
Models:

ES-1024A

Power Supply: 120 VAC
Contact Rating: 30 Amps at 250 VAC
Contact Configuration: 2 Form B (DPST-NC) Contact factory for other configurations
Size: 12" x 10" x 4" NEMA 1

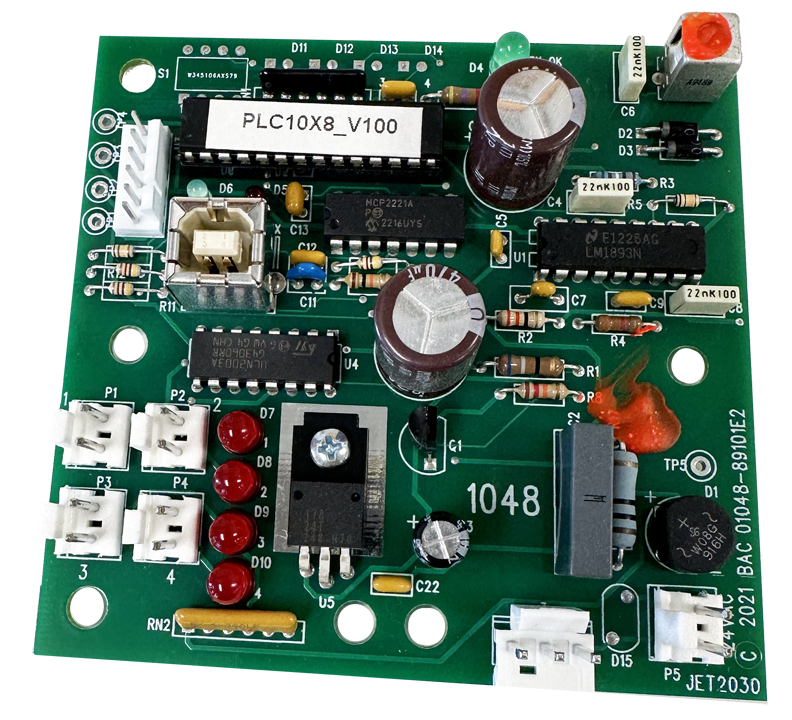

ES-1048A Receiver

ES-1048A Receiver

Description:
The ES-1048A is a four-channel receiver with up to four 30 Amp power relays with DPST-NC (double-pole, single throw, normally closed) contacts.  The ES1048A features a USB programming port that allows programming of all receiver settings.  Each output can be independently assigned to one of the transmitter’s 16 channels making the ES1048 extremely flexible in implementing load control strategies.  In addition, each output can be assigned a minimum on and off time.

Application Information:
General purpose high-power control applications such as water heaters or heat circuits



Specifications
Models:
ES-1048A
Power Supply:
120 VAC
Contact Rating:

Four(max) 30 Amp at 250 VAC

Contact Configuration:

4 Form B (DPST-NC) Contact factory for other configurations

Sizes Available:

12” x 10” x 4” NEMA 1 Enclosure
Other sizes available

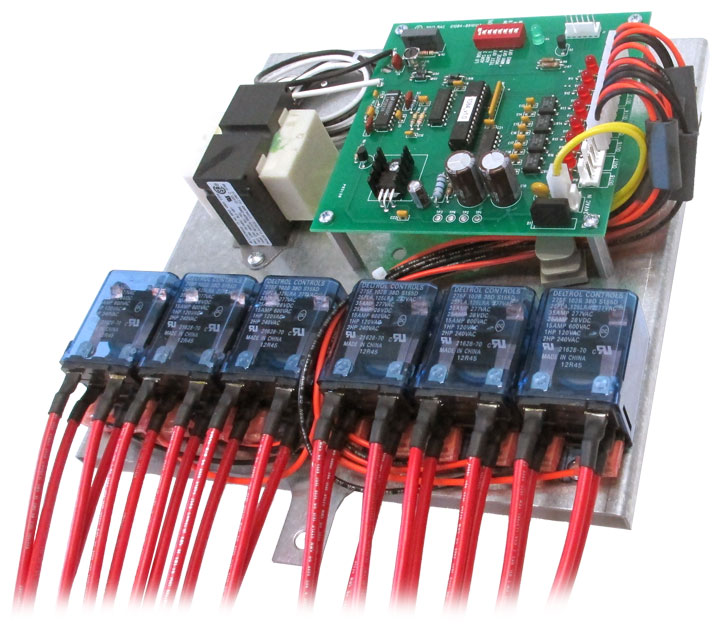

ES-1088A Receiver

ES-1088A Receiver

Description:
The ES-1088A is an eight-channel receiver with up to eight 30 Amp power relays with DPST-NC (double-pole, single throw, normally closed) contacts.  The ES1088A features a USB programming port that allows programming of all receiver settings.  Each output can be independently assigned to one of the transmitter’s 16 channels making the ES1088 extremely flexible in implementing load control strategies.  In addition, each output can be assigned a minimum on and off time for load protection.

Application Information:
General purpose high-power control applications such as water heaters or heat circuits



Specifications
Models:
ES-1088A
Power Supply:
120 VAC
Contact Rating:

Eight(max) 30 Amp at 250 VAC

Contact Configuration:

8 Form B (DPST-NC) Contact factory for other configurations

Size:

18” x 12” x 4” NEMA 1 Enclosure
Other sizes vailable

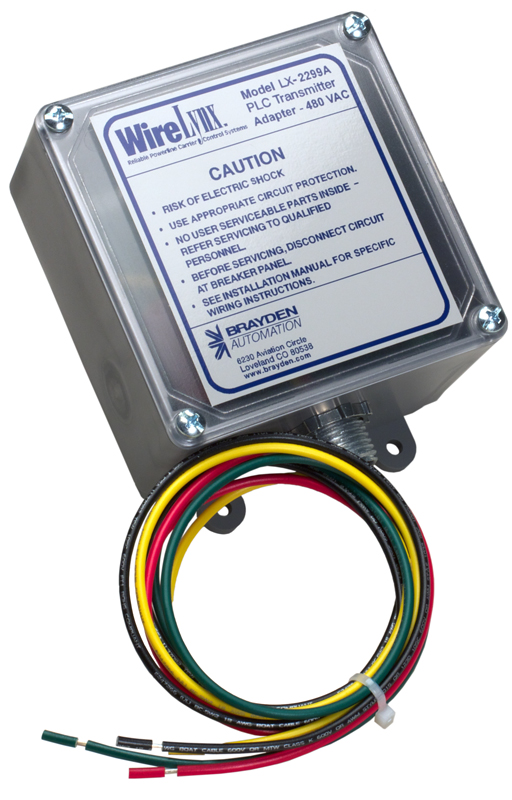

LX-2299A 480V Powerline Adapter

LX-2299

Description:
Use with LX-1010A or LX-401A for adapting to 480 VAC line voltage applications

Application Information:
Used to safely interface the PLC Transmitter to 480 VAC powerlines.



Specifications
Models: LX-2299A
Power Supply: 480 VAC
Size:

4.5" x 4.5" x 2.5"
